Description.

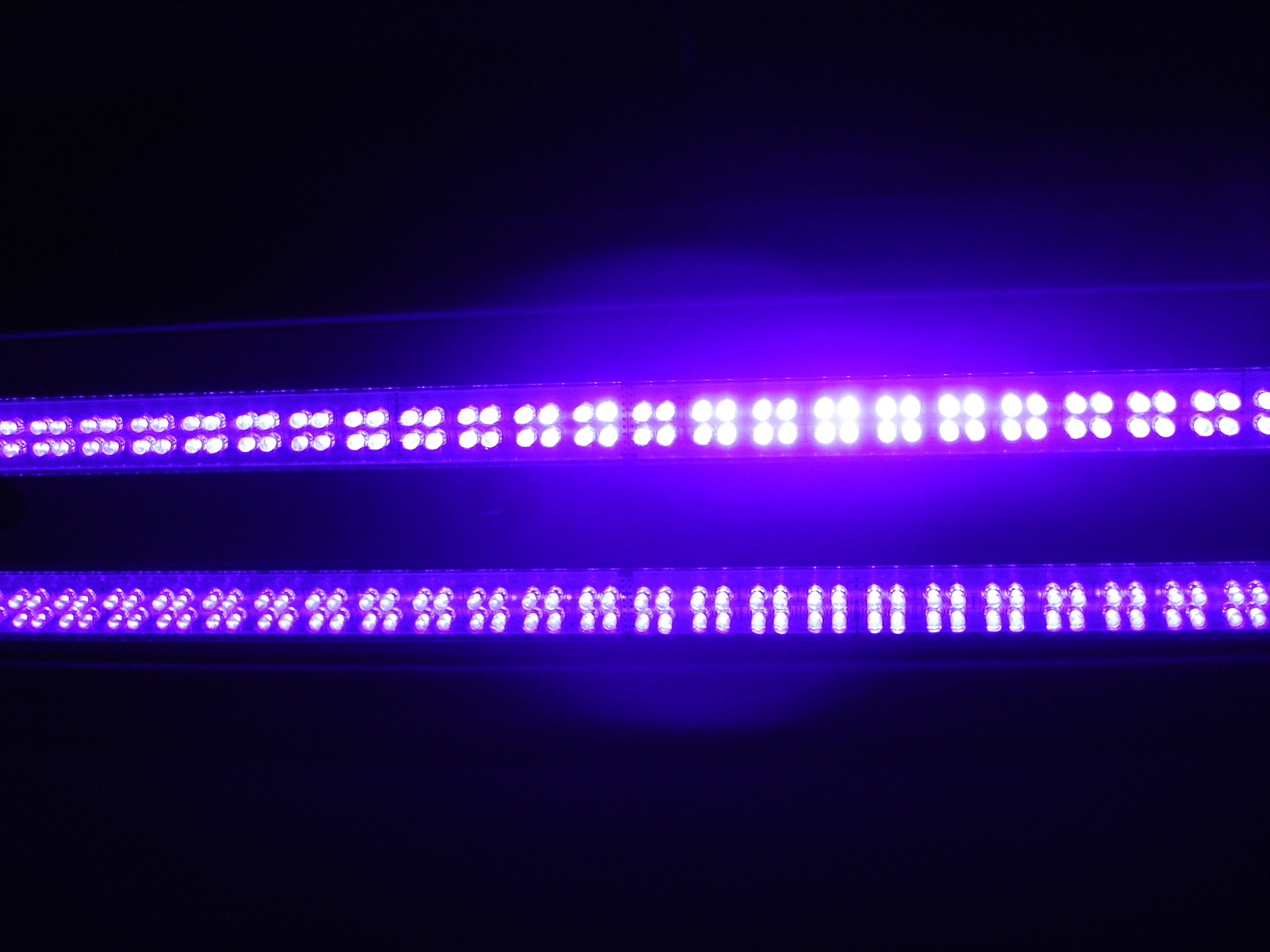

T8, UV & Violet Light Source,
UV Resistant Polycarbonate
Housing.
| P/N | 370-4FUT | 380-4FUT | 390-4FUT | 400-4FUT | 410-4FUT | 420-4FUT |
| λp Range |
365nm ~ 375nm |
375nm ~ 385nm |
385nm ~ 395nm |
395nm ~ 405nm |
405nm ~ 415nm |
415nm ~ 425nm |
| Output Power | 672mw | 1232mw | 1680mw | 2240mw | 2912mw | 2912mw |
|
UV LED Light Source |
VioLED 370-5R15 |
VioLED 380-5R15 |
VioLED 390-5R15 |
VioLED 400-5R15 |
VioLED 410-5R15 |
VioLED 420-5R15 |
| UV LED Q'ty | 224pcs | |||||
| Beam Angle | 15 degree | |||||
| Input Voltage | standard: AC 230V / option:AC 110V | |||||
| Power Consumption | 22.3W(230V) / 16.7W(110V) | |||||
| Cap Base | G13 | |||||
| Color of Housing | White | |||||
| Material of Housing | UV Resistant Polycarbonate. | |||||
| Operating Temperature | -20 °C ~ +50 °C | |||||
| Storage Temperature | -40 °C ~ +80 °C | |||||
| Dimensions | 96*102mm | |||||
| (Dia. * Height) | ||||||
| Weight | 340g | |||||
